液氢加氢机
传统气氢“加注慢、损耗高、运营成本高”三大痛点，正成为制约氢能交通规模化发展的核心瓶颈。液氢储运效率高、加注速度快、续航能力强、运营成本低的特点，正在打破这一困局。

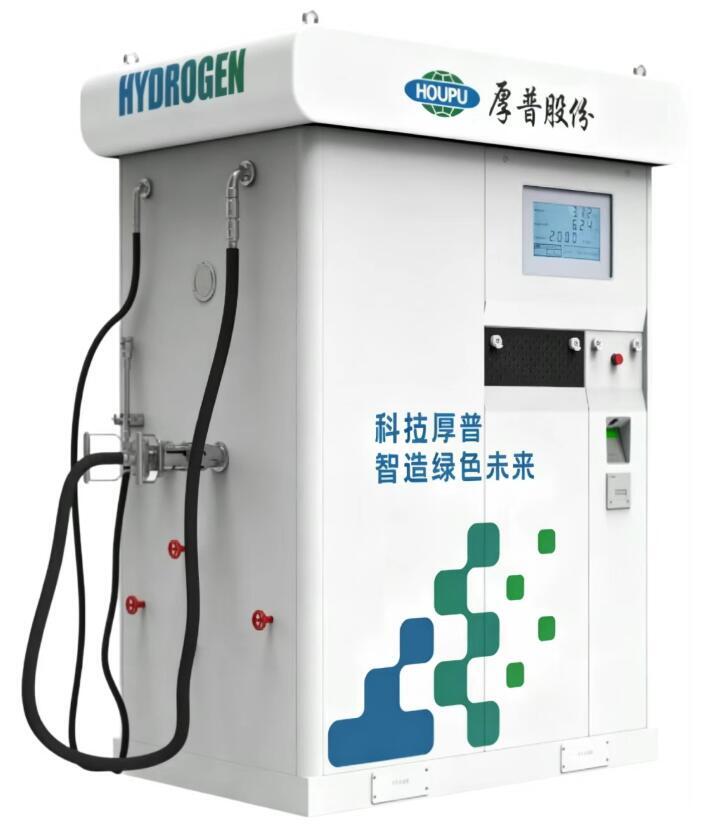

液氢加氢机是实现液氢在交通领域高效利用的核心装备，专为-253°C液氢精确加注设计，是连接液氢储运设施与燃料电池汽车的关键枢纽，实现了液氢加注的高精度、高安全、高效率，为液氢重卡、客车及特种车辆提供一站式加注解决方案。
The three major pain points of traditional gaseous hydrogen refueling—slow refueling, high energy loss, and elevated operating costs—have become core bottlenecks constraining the large-scale development of hydrogen-powered transportation. Liquid hydrogen, with its inherent advantages of high storage and transport efficiency, fast refueling speed, strong endurance, and low operating costs, is now breaking through these barriers.
The Liquid Hydrogen Dispenser is the core equipment enabling efficient utilization of liquid hydrogen in the transportation sector. Specifically designed for precise refueling at -253°C, it serves as a critical link between liquid hydrogen storage and transportation facilities and fuel cell vehicles. Delivering high-precision, high-safety, and high-efficiency liquid hydrogen refueling, it provides a one-stop refueling solution for liquid hydrogen heavy-duty trucks, buses, and specialized vehicles.
主要指标参数 Technical parameters
1、计量准确度：±1.5%
Calculate accuracy
2、计量重复性：≤最大允许误差绝对值的1/3
Calculate repeatability：≤ 1/3 of the absolute value of the maximum permissible error
3、额定工作压力：1.6 MPa
Rated working pressure
4、工作环境温度 ：(-40~50)°C
Operating ambient temperature
5、最大流量：10 kg/min
Maximum flow rate
性能特点 Features
·极低温适应能力
·Extremely low temperature adaptability
·超高精度计量
·Ultra-high precision metering
·可实现氢气快速加注
·Fast filling ability
·多重安全保障
·Multiple security guarantees
·智能化管理
·Intelligent management
·防盗液功能
·Anti-theft liquid function
